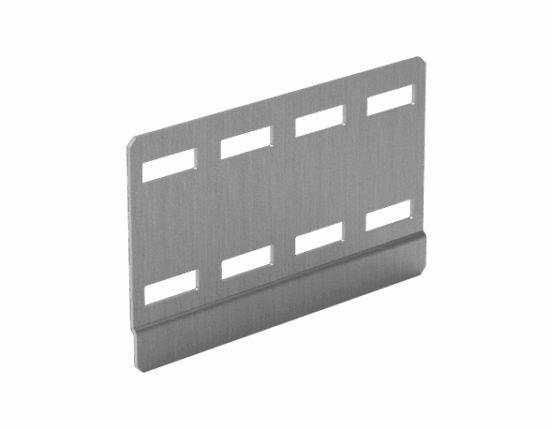

Ladder Expansion Coupler
ALXXX-CEX
- Available in 5 sidewall heights - 60mm, 85mm, 100mm, 125mm, 150mm
- Pre-Galv as standard - change suffix on partcode for alternative finish
- Available in Magnelis® and Stainless Steel 316
- Supplied in Pairs
- Supplied with cable ladder fixings
- Maximum movement = 48mm
- Supports required 600mm either side of joint
ORDERING INFORMATION
Armorduct cable ladder has been specifically designed to meet the challenging and evolving requirements of the most demanding installations.
Our ladder features:
- Specially sized rung slots which allow the use of wider cable straps & ties from all leading brands, without the need for brackets
- Rungs alternatively inverted as standard, also available all rungs up or all rungs down
- Cut & couple anywhere along the length, this reduces time consuming onsite work e.g drilling
- Maximised loading capacity by positioning rungs as low as possible
- Available in 5 sidewall heights
- Earth bonding included along the whole length
- Tabbed construction optimises manufacture to minimise lead-times, whilst maintaining structural integrity
- All fittings feature integral couplers
- Designed, manufactured and tested in accordance with BS EN IEC 61537
- Contact our in-house experts for custom versions and bespoke product needs.
